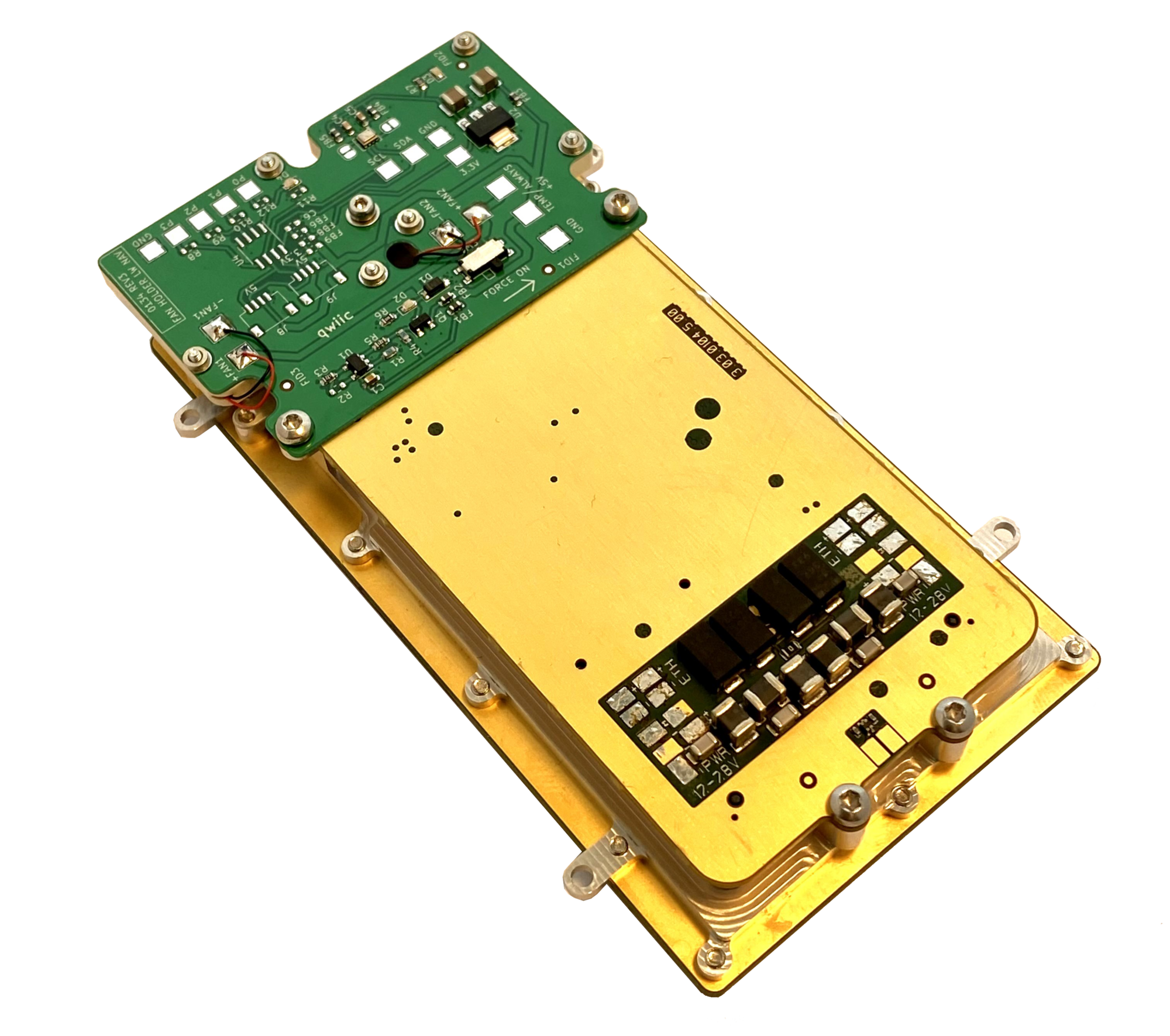

CRE2-144-LW-NAV is extended with a module that gives high precision geolocation navigation in addition to the tactical long range wireless communication system. CRE2-144-LW-NAV extracts angular and distance information from all the phased array antennas within communication range and performs a massive signal processing from the antenna array data to determine the geolocation with high performance and reliability. The maximum user data throughput is 15 Mbps. Dimensions are 120 × 65 × 17.2 mm. Weight is 130 g.

This ITAR-free product has the following features:
* Navigation and wireless communication in one module
* High precision positioning and time reference system
* Fully independent of satellite infrastructure
* C-band phased array tactical wireless radio
* IP centric/ad hoc network operations
* Novel ad hoc self-healing navigation network system
* Detects GNSS jamming and spoofing
* Full 3D positioning
* AES-256 link encryption hardware
* Unmatched bandwidth and range
* Field proven
* Easy to install and operate

  • Electrical parameters:
    Power supply: 19-55 VDC
  • Data interface: Ethernet 10/100baseT
  • Wireless parameters:
    Available data capacity: 15 Mbps
  • Wireless encryption: AES-256

For more information, download datasheet.
